50 mm Render Board Foam Panel Cladding 4.8m x 1.2 m
Description / 50 mm Render Board Foam Panel Cladding 4.8m x 1.2 m
50 mm Foam Render Board External Cladding 5m x 1.2m

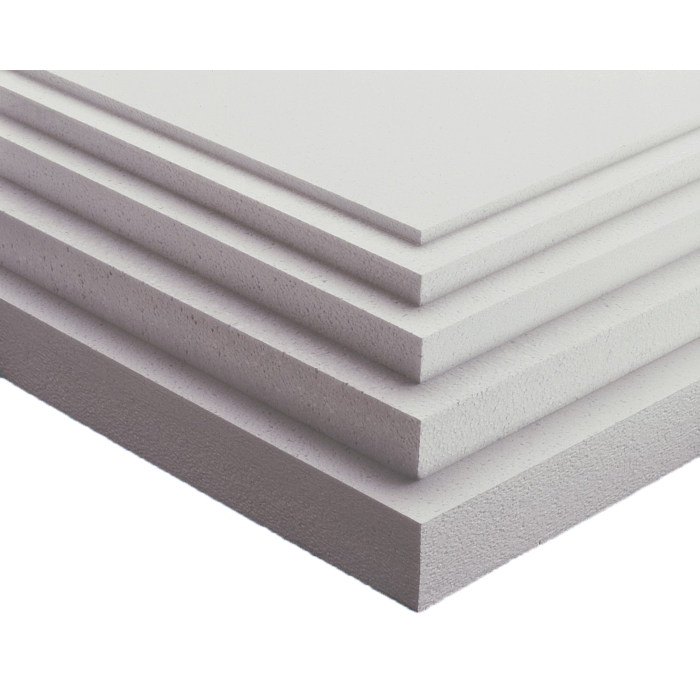

Versatile, lightweight and economical, expanded polystyrene sheets are an ideal insulation material that can be used in both commercial and residential applications. Cost effective and economical, our expanded polystyrene sheets deliver excellent thermal insulation to ensure long term R-values. The strength and durability of RSC expanded polystyrene sheets means that it can be used to insulate wall cladding, floors, under slabs and even garage doors. Recyclable and sustainable, our expanded polystyrene sheets do not contain any CFCs and complies with Australian Building Standards.
| OTHER PROPERTIES | UNIT | SL | S | M |
|---|---|---|---|---|
| Density - nominal | kg/m3 | 13.5 | 16 | 19 |
| Compressive strength at 1% deformation, max. | kPa | 23 | 31 | 42 |
| Compressive strength at 5% deformation, max. | kPa | 59 | 68 | 95 |
| Flexural strength, min. | kPa | 150 | 178 | 218 |
| Elastic modulus, min. | kPa | 2200 | 3100 | 4250 |
| Water absorption by total immersion, max. | Vol% | 4 | 4 | 3 |
| Buoyancy force | kg/m3 | 986.5 | 984 | 981 |
| Coefficient of thermal expansion | m/m deg K |
| PROPERTY | UNIT | SL | S | M |
|---|---|---|---|---|
| Compressive stress at 10% deformation, min. | kPa | 70 | 85 | 105 |
| Cross breaking strength, min. | kPa | 135 | 165 | 200 |
| Rate of vapour transmission, max. measured parallel to rise at 23°C | μg/m2.s | 630 | 580 | 520 |
| Max. dimensional stability of length, width and thickness, 7 days at 70°C | % | 1 | 1 | 1 |
| Min. thermal resistance (50mm sample) at a mean temperature of 25°C | m2K/W R(50/90) | 1.20 | 1.22 | 1.25 |
Features & Applications
- EPS Foam polystyrene one of the most versatile boards on the market
- Foam Panel Class M Grade one of the most dense EPS boards in its class
- Size 50mm x 1200mm x 5000mm
- Render friendly with fiberglass meshing
- Used for external wall cladding board/panel
- Great use for sample boards to showcase Venetian art
- Void in-fills for new window installation
- Void in-fills for concreting
- Easily mouldable and shaped with the use of a poly saw or hot knife
- Used across a wide array of build applications such as first-floor exterior wall cladding
- Best value for exterior render boards
- Very good insulation properties used in caravans, roof cavities and wall insulation
Need Help With Quantities?
Try our foam cladding calculator to estimate how many panels you’ll need for your project.
Shipping & Pickup
Available for in-store pickup
Pick up locations for NSW and QLD are below
NSW
25 Garling Rd, Kings Park 2148
(Min Order $250, Lead times may apply)
QLD
26 Moonbi St, Brendale 4500
(Min Order $250, Lead times may apply)
VIC
1/7 Kempson Court, Keysborough 3173
Bulk order shipping available Australia-wide
Please call 03 8535 4115 to confirm stock and request a freight quote
There will be no returns or refunds on EPS Foam Panels as they are easily damaged and will not be accepted for return.
Orders changed within 24 hours of the delivery schedule will incur a 5% surcharge as a restocking fee. Please make sure you order the right quantities to avoid this surcharge.
