75 mm Foam Board Panel 2.4 m x 1.2 m
Description / 75 mm Foam Board Panel 2.4 m x 1.2 m
75 mm Foam Board Panel 2.4m x 1.2m
Features & Applications
- EPS foam polystyrene – one of the most versatile boards on the market
- Foam panel Class M Grade – one of the most dense EPS boards in its class

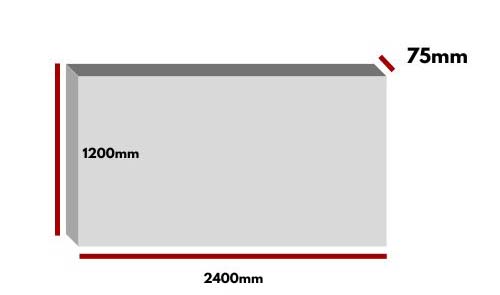

- Size: 75mm x 1200mm x 2400mm / 3.8kg
- Render friendly when used with fiberglass meshing
- Used for external wall cladding board/panel
- Great for sample boards to showcase Venetian finishes
- Void infills for new window installation
- Void infills for concreting
- Easily mouldable and shapeable using a poly saw or hot knife
- Used across many build applications such as first-floor exterior wall cladding
- Best value for exterior render boards
- Very good insulation properties – used in caravans, roof cavities and wall insulation
- Craft and hobbies – popular for props and background set design
- Photography – background and reflective/bounce boards
- Free recycling bag for unused offcuts — drop it off in-store for free to help recycle
Versatile, lightweight and economical, expanded polystyrene sheets are an ideal insulation material that can be used in both commercial and residential applications. Cost effective and economical, our expanded polystyrene sheets deliver excellent thermal insulation to ensure long term R-values. The strength and durability of RSC expanded polystyrene sheets means that it can be used to insulate wall cladding, floors, under slabs and even garage doors. Recyclable and sustainable, our expanded polystyrene sheets do not contain any CFCs and complies with Australian Building Standards.
| OTHER PROPERTIES | UNIT | SL | S | M |
|---|---|---|---|---|
| Density - nominal | kg/m3 | 13.5 | 16 | 19 |
| Compressive strength at 1% deformation, max. | kPa | 23 | 31 | 42 |
| Compressive strength at 5% deformation, max. | kPa | 59 | 68 | 95 |
| Flexural strength, min. | kPa | 150 | 178 | 218 |
| Elastic modulus, min. | kPa | 2200 | 3100 | 4250 |
| Water absorption by total immersion, max. | Vol% | 4 | 4 | 3 |
| Buoyancy force | kg/m3 | 986.5 | 984 | 981 |
| Coefficient of thermal expansion | m/m deg K |
| PROPERTY | UNIT | SL | S | M |
|---|---|---|---|---|
| Compressive stress at 10% deformation, min. | kPa | 70 | 85 | 105 |
| Cross breaking strength, min. | kPa | 135 | 165 | 200 |
| Rate of vapour transmission, max. measured parallel to rise at 23°C | µg/m2.s | 630 | 580 | 520 |
| Max. dimensional stability of length, width and thickness, 7 days at 70°C | % | 1 | 1 | 1 |
| Min. thermal resistance (50mm sample) at a mean temperature of 25°C | m2K/W R(50/90) | 1.20 | 1.22 | 1.25 |
