75 mm Render Board Foam Panel Cladding 4.8m x 1.2 m
Description / 75 mm Render Board Foam Panel Cladding 4.8m x 1.2 m
75 mm Render Board External Cladding 5m x 1.2m

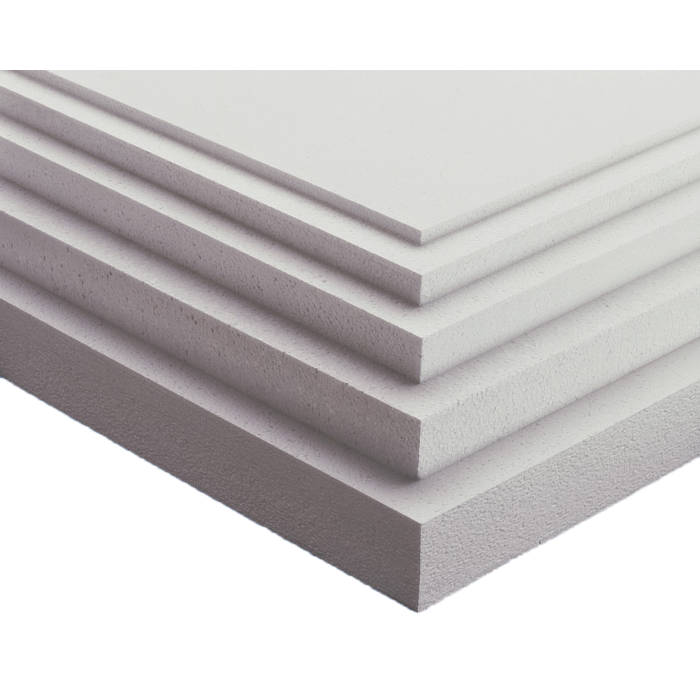

Versatile, lightweight and economical, expanded polystyrene sheets are an ideal insulation material that can be used in both commercial and residential applications. Cost effective and economical, our expanded polystyrene sheets deliver excellent thermal insulation to ensure long term R-values. The strength and durability of RSC expanded polystyrene sheets means that it can be used to insulate wall cladding, floors, under slabs and even garage doors. Recyclable and sustainable, our expanded polystyrene sheets do not contain any CFCs and complies with Australian Building Standards.
| OTHER PROPERTIES | UNIT | SL | S | M |
|---|---|---|---|---|
| Density - nominal | kg/m3 | 13.5 | 16 | 19 |
| Compressive strength at 1% deformation, max. | kPa | 23 | 31 | 42 |
| Compressive strength at 5% deformation, max. | kPa | 59 | 68 | 95 |
| Flexural strength, min. | kPa | 150 | 178 | 218 |
| Elastic modulus, min. | kPa | 2200 | 3100 | 4250 |
| Water absorption by total immersion, max. | Vol% | 4 | 4 | 3 |
| Buoyancy force | kg/m3 | 986.5 | 984 | 981 |
| Coefficient of thermal expansion | m/m deg K |
| PROPERTY | UNIT | SL | S | M |
|---|---|---|---|---|
| Compressive stress at 10% deformation, min. | kPa | 70 | 85 | 105 |
| Cross breaking strength, min. | kPa | 135 | 165 | 200 |
| Rate of vapour transmission, max. measured parallel to rise at 23°C | μg/m2.s | 630 | 580 | 520 |
| Max. dimensional stability of length, width and thickness, 7 days at 70°C | % | 1 | 1 | 1 |
| Min. thermal resistance (75mm sample) at a mean temperature of 25°C | m2K/W |
Features & Applications
- EPS Foam polystyrene one of the most versatile boards on the market
- Foam Panel Class M Grade one of the most dense EPS boards in its class
- Size 75mm x 1200mm x 5000mm
- Render friendly with fiberglass meshing
- Used for external wall cladding board/panel
- Great use for sample boards to showcase Venetian art
- Void in-fills for new window installation
- Void in-fills for concreting
- Easily mouldable and shaped with the use of a poly saw or hot knife
- Used across a wide array of build applications such as first-floor exterior wall cladding
- Best value for exterior render boards
- Very good insulation properties used in caravans, roof cavities and wall insulation
Need Help With Quantities?
Try our foam cladding calculator to estimate how many panels you’ll need for your project.
